[The Sequential Circuits Pro-One Annotated Manual]
[Annotations in bold square brackets by jet.]
[Scanned from a photocopy of the original. Original format retained wherever possible.]
[Modified or replaced graphics noted as such.]

[Page 56]


These panel blanks are provided for you to record your own patches. Feel free to reproduce them for your own use. (For quantities over 100, printing at a "quick print" shop will often be more economical than xerography.)

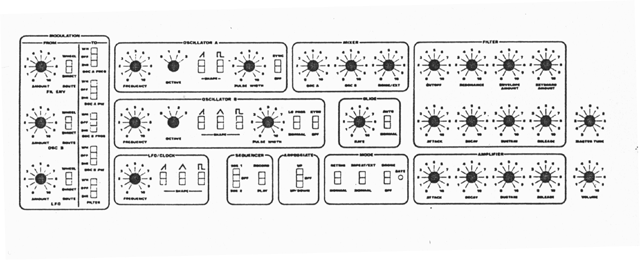

[Follows are several pages of "blank" patch diagrams, 2 per page. I'm not sure of the best ways to distribute these. For starters, here is a 640x260 GIF which looks reasonable on screen at 75dpi. Let me know what formats I should provide these in.]

CM 1OOB 5/81
